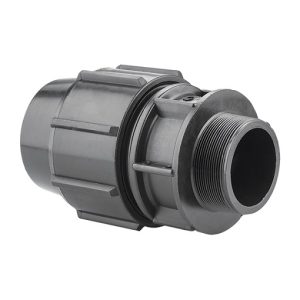

Polyethylene Male Adaptor
One of the most commonly used fittings in polyethylene pipe plumbing systems is the male fitting. This fitting, with a thread on one side, allows for quick and easy connection of polyethylene pipes to valves and other threaded fittings.Features of Male Adaptor
- High resistance: It is resistant to corrosion, UV rays and pressure up to 10 bar.
- Easy installation: It can be installed easily and without special tools.
- Proper sealing: It creates a proper sealing system between the polyethylene pipe and any threaded fittings.
- Long life: Due to the polypropylene material of the connection, it has a long life.
- Resistance to chemicals: This fitting is resistant to most acids and chemical fertilizers.
Applications of Male Adaptor
The polyethylene male fitting is used to connect polyethylene pipes to valves and various threaded parts and is used in irrigation systems and various industries.
Benefits of using polyethylene Male Adaptor
- Speed and ease of installation: Given that this type of fitting does not require welding, its installation is very quick and easy.
- Low cost: The male fitting is installed in less time and costs less than other connection methods.
- Light weight: The lightness of this fitting, in addition to making it easy to transport and maintain, also makes it easy to install.
Fitting components and important points for installing
Fitting components: The male adaptor on the side that is connected to the polyethylene pipe has components, each of which has a function, and the correct arrangement and shape of them ensure accurate connection. These components include: fitting body, sealing ring, split ring, bushing and fitting screw.
The following figure shows the order of these components:
Important tips when installing a Male Adaptor
- Choosing the right size: To make a proper connection, the size of the male fitting must be matched to the size of the polyethylene pipe and the thread on the other side to the threaded fitting that must be closed on it.
- Using Teflon tape: To ensure complete sealing, it is better to use Teflon tape on the threaded fitting side.
- Tightly tightening the nut: The male adaptor nut must be tightened enough to prevent leakage.
| Code | Size | Quantity |
| 10202001200 | 20×1/2” | 150 |
| 10202501200 | 25×1/2” | 100 |
| 10202503400 | 25×3/4” | 100 |
| 10202510000 | 25×1” | 100 |
| 10203210000 | 32×1” | 100 |
| 10204011400 | 40×1 1/4” | 45 |
| 10205011200 | 50×1 1/2” | 30 |
| 10205020000 | 50×2” | 30 |
| 10206320000 | 63×2” | 20 |
| 10207520000 | 75×2” | 11 |
| 10207521200 | 75×2 1/2” | 11 |
| 10209020000 | 90×2” | 9 |
| 10209030000 | 90×3” | 9 |
| 10211030000 | 110×3” | 8 |
| 10211040000 | 110×4” | 8 |
| 10212540000 | 125×4” | 6 |
| 10212550000 | 125×5” | 6 |
