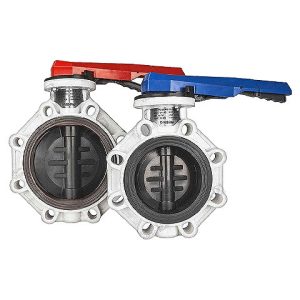

Industrial Butterfly Valve
The industrial wafer-type butterfly valve is designed for opening and closing flow in industrial environments and is suitable for a wide range of fluids. The industrial butterfly valve demonstrates strong resistance in highly corrosive acidic environments, making it reliable for demanding applications.
Another key feature of the polymeric industrial butterfly valve is the ability to mount actuators directly, with the option of using either a lever handle or a gearbox. Overall, the Visspar industrial butterfly valve, with its high-quality construction, excellent performance, long service life, and cost-effective pricing, serves as a strong alternative to traditional metallic valves.
Specifications of Industrial Butterfly Valve
The industrial butterfly valve features a high-quality body and a durable metal handle. Its main advantage compared to other valves is the flexibility in material selection: the disc can be manufactured from ABS, PP, CPVC, or U-PVC, while the sealing rubber can be chosen from VITON or EPDM.
This adaptability allows the valve to be customized according to specific application requirements.
Technical Specifications
- Nominal pressure: 10 bar (sizes 63 to 125 mm)
- Nominal pressure: 6 bar (sizes 160 and 200 mm)
- Nominal pressure: 4 bar (size 250 mm)
- Low pressure drop
- High resistance to chemical corrosion
- Anti-UV properties, resistant to sunlight
- Replaceable components
Applications of Industrial Butterfly Valve
The industrial butterfly valve is a quarter-turn valve designed for opening, closing, and controlling fluid flow. It can be operated using lever, gearbox, pneumatic, electric, or hydraulic actuators. As part of the polymer valve family, the industrial butterfly valve is versatile and suitable for use across multiple industries.
Typical Applications
- Swimming pool and jacuzzi installations and piping systems
- Water treatment plants and desalination units
- Greenhouses
- Oil and gas industries
The main advantage of this valve lies in the flexibility of disc and rubber material selection, which provides high resistance against corrosion in acidic and aggressive environments. This significantly extends the service life of industrial butterfly valves.Additionally, the polymer body and handle make them suitable for environments containing corrosive vapors and gases.
| Product | Size (mm) | Quantity per Carton |
| Industrial Polymeric Butterfly Valve with Metal Handle | 63 | 12 |
| Industrial Polymeric Butterfly Valve with Metal Handle | 90 | 8 |
| Industrial Polymeric Butterfly Valve with Metal Handle | 110 | 8 |
| Industrial Polymeric Butterfly Valve with Metal Handle | 125 | 3 |
| Industrial Polymeric Butterfly Valve with Metal Handle | 160 | 3 |
| Industrial Polymeric Butterfly Valve with Metal Handle | 200 | 2 |
| Industrial Polymeric Butterfly Valve with Metal Handle | 250 | 2 |
