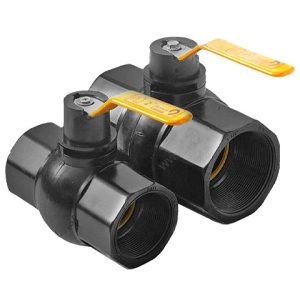

Metal Handle Quick-Action Ball Valve
The metal handle quick-action ball valve, classified as a polymer valve, features a one-piece body with a durable metal handle. It is highly cost-effective in terms of performance and provides an economical solution compared to traditional metal valves.
With its impact-resistant body and coated metal handle, this valve serves as an excellent alternative to metal valves at a significantly lower price. It offers strong resistance against chemical corrosion and scaling, ensuring long-term reliability in various applications.
Available in sizes ranging from 1″ to 2 1/2″, the valve combines durability, efficiency, and affordability, making it a practical choice for modern piping systems.
Technical Specifications of Metal Handle Quick-Action Ball Valve
The technical specifications of the our metal handle quick-action ball valve are as follows:
- Nominal pressure: 6 bar
- Material: Polymer
- Size range: 1″ to 2 1/2″
- Applications: Agriculture, water distribution, water and wastewater branches
- Resistance to cold, sunlight, and corrosive environments
- Chemical and corrosion resistance
- Scale-resistant design
- Anti-UV feature for protection against sunlight
- Lightweight construction for easy installation and maintenance
- No need for painting or coating
- Simple installation and repair
Applications of Metal Handle Quick-Action Ball Valve
The metal handle quick-action ball valve is widely used in agriculture, water transmission, and water and wastewater distribution systems. Made of polymer material with a nominal pressure capacity of 6 bar, it offers a cost-effective solution for flow control and outlet management while maintaining high quality and durability.
The operating principle of the metal handle quick-action ball valve is based on the movement of the internal ball. The polymer body houses a polymer ball that rotates to either open or close the flow. When the ball is in the open position, fluid passes through freely; when rotated to the closed position, the flow is completely stopped.
| Product | Size (inch) | Quantity per Carton |
| Metal Handle Quick-Action Ball Valve | 1″ | 100 |
| Metal Handle Quick-Action Ball Valve | 1 1/2″ | 46 |
| Metal Handle Quick-Action Ball Valve | 2″ | 24 |
| Metal Handle Quick-Action Ball Valve | 2 1/2″ | 16 |
