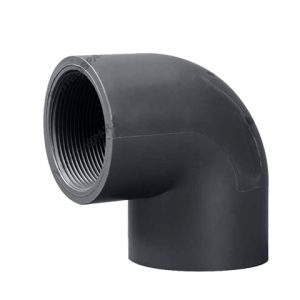

Threaded 90° Elbow
The 90 degree elbow with one end of the thread, which is adhesive on one side and female thread on the other, has a high quality of construction and is highly resistant to temperature and chemicals, which is why it can be used well to equip swimming pools and jacuzzis, metal, chemical and oil and gas industries.
The threaded 90° elbow is made of the highest quality and best raw materials of UPVC in advanced injection machines. The high quality of the products is due to the use of modern and well-equipped machinery.
Technical Specifications of Threaded 90° Elbow
Because it has a rib end, the 90° elbow with single rib end has a higher weight than the 90° elbow with adhesive and a higher price than its solvent cement type. The technical specifications of the threaded 90° elbow are:
- Capacity to withstand pressure of 16 bar
- Size 1/2 to 4 inches
- High temperature resistance
- Resistant to sedimentation and corrosion of chemicals
- Prevent pressure drop with high surface smoothness
- Excellent sealing
Usage of Threaded 90° Elbow
The threaded 90° elbow of UPVC is used to connect UPVC pipes to galvanized pipes and other threaded fittings. Unlike the 90° salvent cement elbow, one end of this product must be connected to a pipe or fitting that has a thread or a rib on its surface. Since this product has an internal rib, it is recommended to use Teflon tape for better sealing. This product is currently available from size 20 to 110 and its working pressure is 16 bar in all sizes.
Note that the ribbed head of the 90° elbow has an internal rib; therefore, parts that have an external rib can be connected to the pipes through the UPVC straight elbow. For complete and reliable sealing of this connection, sealing tape or Teflon tape is generally used.
| Product | Size (mm) | Quantity in packaging |
| U-PVC Threaded 90° Elbow | 20 | 280 |
| U-PVC Threaded 90° Elbow | 25 | Coming soon |
| U-PVC Threaded 90° Elbow | 32 | 100 |
| U-PVC Threaded 90° Elbow | 40 | 64 |
| U-PVC Threaded 90° Elbow | 50 | 80 |
| U-PVC Threaded 90° Elbow | 63 | 36 |
| U-PVC Threaded 90° Elbow | 75 | Coming soon |
| U-PVC Threaded 90° Elbow | 90 | Coming soon |
| U-PVC Threaded 90° Elbow | 110 | Coming soon |
